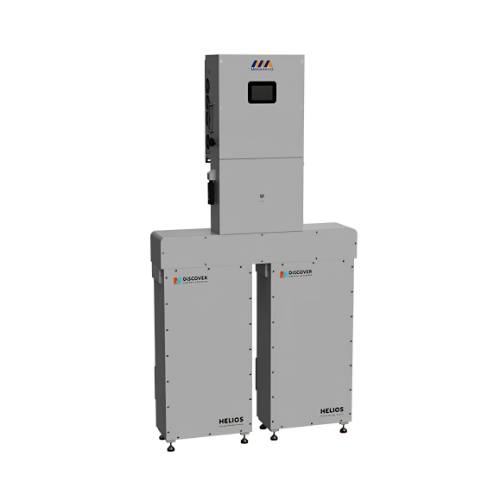

Discover Battery HELIOS Hybrid Inverter Bundle 32kWh + Megarevo 16K Inverter

The Discover HELIOS Hybrid Inverter Bundle HIB-MGR-32000 is a pre-engineered energy storage system that pairs two Discover HELIOS lithium batteries (32.16kWh total usable energy) with a 16kW Megarevo hybrid inverter. It is designed for whole-home backup, solar self-consumption, and hybrid energy management in residential and light commercial applications, with a 200A whole-home passthrough.

Because the battery, inverter, and system components arrive together and are validated as a set, the bundle cuts on-site wiring and configuration time and makes commissioning more predictable. The system supports grid-tied, hybrid, and off-grid operation, closed-loop battery communication, generator integration, and integrated monitoring.

Included in the bundle:

• (2) Discover HELIOS batteries (16.08kWh each)
• (1) Megarevo 16kW hybrid inverter
• DC cable kit
• Communication cable (CAN)
• Dual conduit box
• Mounting hardware

Key Features:

• 32.16kWh total usable energy (2 x 16.08kWh), 51.2V, 628Ah
• 16kW inverter output (17.6kVA), up to 24kW of solar input
• 200A max grid passthrough, transfer time under 10ms
• 4 MPPT inputs, 120-500V PV input range
• Supports grid-tied, hybrid, and off-grid operation
• Generator integration and energy management
• Wi-Fi monitoring (optional 4G), with CAN and RS485 communication
• IP65 / NEMA 3R rated, floor standing or wall mounted
• Rapid shutdown transmitter output for NEC 690.12 compliance where required

Specifications:

System:

• Total usable energy: 32.16kWh (2 x 16.08kWh)
• Battery nominal voltage: 51.2V
• Total capacity: 628Ah
• Inverter output power: 16kW (17.6kVA)
• Maximum solar array size: 24kW
• Max grid passthrough: 200A
• Transfer time: <10ms
• Operating temperature: -25°C to 60°C (-13°F to 140°F)
• Relative humidity: 0-95%
• Operating altitude: up to 4,000m (derating above 2,000m)

PV Input (Inverter):

• Max input power: 24kW
• PV input voltage: 120V min / 500V max
• MPPT voltage range: 120-500VDC
• Operating voltage range: 120-430VDC
• Rated PV input voltage: 310V
• MPPT trackers: 4
• Rated input current per MPPT: 20A
• Max short circuit current per MPPT: 25A

AC Output (Grid):

• Rated grid voltage: 120/240V split phase (2L+N+PE) or 240V single phase
• Frequency: 60Hz (55-65Hz)
• Rated power: 16kW (17.6kVA)
• Rated / max current: 66.7A / 73.3A
• THDI: <3%

AC Output (Off-Grid):

• Battery inverted power: 13kW
• Max apparent power (with PV): 16kVA
• Nominal output voltage: 120/240V
• Nominal frequency: 60Hz
• Power factor: 0.8 leading to 0.8 lagging
• Output THDU: <2%
• Note: without PV generation, AC output is limited to 13.2kVA by the battery DC/DC converter

DC Power (Inverter):

• Max charge / discharge current: 260A / 280A
• Nominal charge / discharge power: 13.3kW / 14.3kW
• Max battery to load efficiency: 94.6%
• Max PV to battery charging efficiency: 95.8%
• Max grid to battery charging efficiency: 94.5%

Mechanical:

• Total system dimensions (H x W x D): 2,029mm x 1,112mm x 272.5mm (79.9" x 43.8" x 10.7")
• HELIOS battery (each): 934mm H x 465mm W x 272.5mm D, 136kg (299 lbs)
• Megarevo inverter: 495mm H x 900mm W x 260mm D, 56kg (124 lbs), wall mounted
• Ingress protection: IP65 / NEMA 3R

Protection:

• Arc fault, residual current monitoring, ground fault detection, over-current, over-voltage, short circuit, and island protection (all from the inverter)

Certifications:

• Battery energy storage system: UN38.3, UL 9540A, UL 9540 DC ESS (3rd Edition), UL 1973
• Inverter: UL 1741, UL 1741 SA/SB, UL 1699B, CSA C22.2 No. 107.1-01, rapid shutdown (NEC 690.5, 690.11, 690.12)
