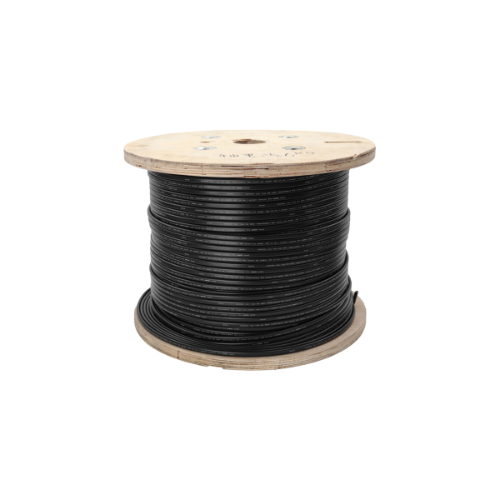

The Q Cable is a 300 meter continuous length 12AWG cable. The cable is handled like standard outdoor-rated electrical wire, allowing it to be cut, spliced and extended as needed. It is used for landscape PV modules.

• 2-wire cable is 50% lighter than previous generation Enphase cable
• New cable numbering simplifies wire management
• UL listed

Compatible with IQ Series Microinverters & Q Cable
• Enphase IQ8
• Enphase IQ8+
• Enphase IQ8A
• Enphase IQ8M
• Enphase IQ8H
• Enphase IQ7
• Enphase IQ7+
• Enphase IQ7X
• Enphase IQ7A

**SOLD BY THE FOOT

Field Wireable Q Connectors and Raw Q Cable

The Enphase IQ Microinverter System makes complex installations simple. Field Wireable Q Connectors (Q-CONN-10F and Q-CONN-10M) and raw Q Cable (Q-12-RAW-300) allow a wide-range of installation options that are not available in DC systems or other microinverter systems. You can run raw Q Cable through conduits, raceways, or chases between sub-arrays to help to minimize the amount of conduit, conduit bending, wire-pulls, and wiring connections that are required on a project.

You must terminate the raw Q Cable in one of the following manners:

• Into a junction box using a ½- service entrance (SE) strain reliefs or UF cable glands

• With a Field Wireable Q Connector (male or female)

Splicing Enphase Q Cable and Raw Q Cable with Junction Boxes:
For complex installations that include multiple arrays, it is possible to use raw Q Cable (Q-12-RAW-300) to service the arrays and branch circuits that originate directly at the primary roof mounted junction box. In the case that Field Wireable Q Connectors are not readily available, you can use a small junction box to splice two sections of Q Cable together or to splice Q Cable to raw Q Cable.

To terminate the raw Enphase Q Cable, you must do so in one of the following manners:
• Into a junction box using a ½- service entrance (SE) strain reliefs or UF cable glands
• With a Field Wireable Q Connector (male or female)

Enphase 240VAC 1-Phase Trunk Cable IQ No Connectors Q-12-RAW

Enphase 240VAC 1-Phase Trunk Cable IQ No Connectors Q-12-RAW
