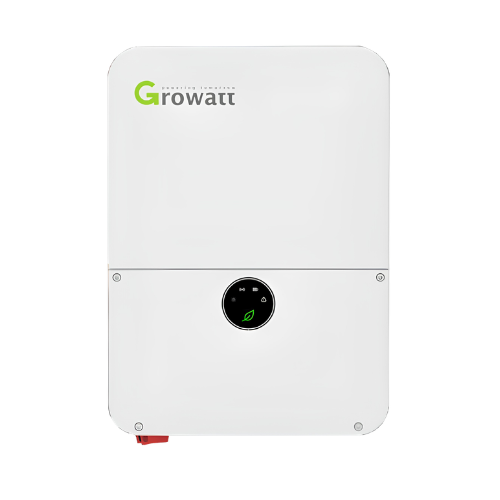

Growatt MIN 3.8kW Hybrid Inverter – Partial Backup, WIFI, RGM

Growatt MIN 3800TL-XH-US — 3.8kW Grid-Tie Battery Storage Solar Inverter

• 3.8kW AC output at 240V nominal — designed for residential rooftop solar with battery storage
• Compatible with Growatt ARO & APX high-voltage batteries — supports both partial and whole-home backup configurations (V1/V2/V3)
• Up to 98.0% max efficiency with a DC/AC ratio up to 2.0 for maximized solar harvest
• 2 MPPT inputs, 600V DC max — works with a wide range of PV array configurations
• DC-Coupled and AC-Coupled system support — flexible for new installs or retrofits
• Multiple energy management modes — Self-Consumption, Zero Export, Time-of-Use (TOU), and Off-Grid
• Whole-home backup & dark start operation — powers your home even when the grid goes down
• Rapid Shutdown (RSD) and AFCI integrated — meets NEC code requirements for safety
• Built-in WiFi & LAN monitoring — manage and track your system via the Growatt ShinePhone app or web portal
• Tigo Transmitter integrated — module-level monitoring and rapid shutdown compatible
• RGM meter support — ready for revenue-grade metering
• Certifications: UL1741SA/SB, UL9540, CEC Listed, CA Rule 21 & HECO compliant
• 10-year manufacturer warranty
