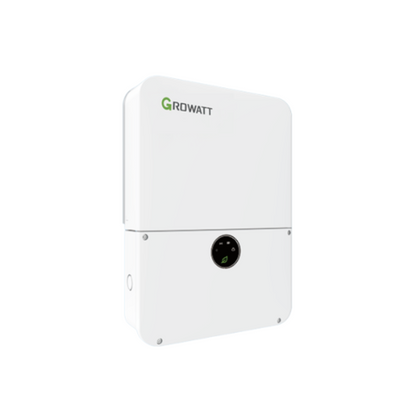

Growatt MIN 7.6kW Hybrid Inverter – Whole Home Backup, WIFI/4G, RGM

Growatt MIN 7.6kW Hybrid Inverter with Whole Home Backup, WIFI/4G, and RGM — a compact yet powerful inverter for residential solar + storage systems requiring full-home backup, smart monitoring, and code-compliant energy production. This V3 model enables whole home backup using dual AC ports, with separate outputs for grid-tied and backup loads. It includes an integrated Rapid Shutdown Transmitter (TRS-T) for NEC 690.12 fire safety compliance.

The WG5 configuration features both WIFI and 4G LTE connectivity, bundled with a 5-year data plan, enabling real-time system monitoring through the Growatt ShinePhone and ShineServer platforms. A built-in Revenue Grade Meter (RGM) ensures energy production data meets ANSI C12.20 utility standards.

Rated for 7,600W AC output at 240V (5,200W @ 208V), this hybrid inverter is compatible with Growatt APX and ARO HV battery systems, as well as LG enblock Prime storage. With up to 98.4% max efficiency, a NEMA 4X outdoor-rated enclosure, and passive cooling, it delivers reliable performance in all climates.

Supports advanced energy modes including time-of-use (TOU), zero export, self-consumption, and full off-grid operation. Certified to UL 1741-SA/SB, CA Rule 21, HECO SRD, and FCC Part 15 Class B for nationwide interconnection.

Key Features

• Output Power: 7.6kW (240V), 5.2kW (208V)
• Backup Type: Whole Home Backup (V3)
• Communication: WIFI + 4G with 5-Year Data Plan (WG5)
• Rapid Shutdown: Integrated TRS-T (Tigo-compatible)
• Monitoring: Revenue Grade Meter (ANSI C12.20)
• Certifications: UL 1741-SA/SB, Rule 21, HECO, FCC
• Protection: AFCI, RSD, NEMA 4X (IP65), GFDI
• Battery Compatibility: Growatt APX / ARO HV, LG enblock Prime
• Warranty: 10 years standard; optional 15 or 20-year extension
