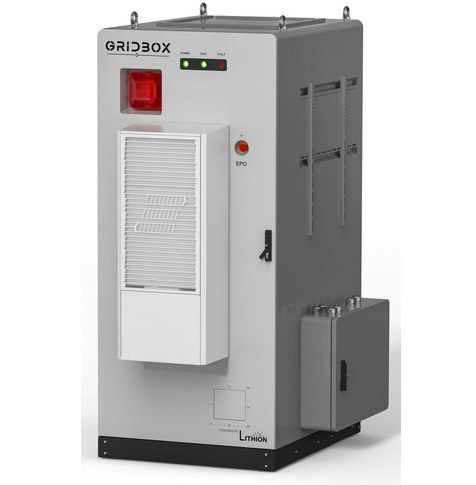

HomeGrid Lithion GridBox GB3 DC-Only Battery Energy Storage System

The Lithion GridBox GB3 is a high-energy-density Battery Energy Storage System (BESS) built specifically for commercial and industrial applications. It features LiFePO4 battery modules, integrated module- and system-level fire detection and suppression, air cooling, and overcurrent protection. The system is built as a DC-only block, allowing it to pair with the inverter of your choice.

A purpose-built IP55 (NEMA 3R) enclosure protects against environmental elements to extend service life, and the system includes a U.S.-made Lithion XB battery management system with three-level protection, CANbus/Modbus support, UL/IEC safety compliance, state-of-health reporting, and SD-card event logging.

The GB3 is available in four module configurations (4, 5, 6, or 7 modules), ranging from 120kWh to 211kWh per system, and supports up to 8 units in parallel for a maximum scalable capacity of 1,688kWh.

Key Features:

• LiFePO4 chemistry for stable discharge, strong safety performance, and long cycle life
• U.S.-made Lithion XB BMS with three-level protection
• CANbus/Modbus communication support
• SOH (state of health) reporting and SD-card event logging
• 24/7 performance monitoring capability
• Integrated fire suppression system (module and system level)
• Dantherm HVAC thermal management system
• Steel enclosure with corrosion-resistant powder coating
• DC-only design, pairs with the inverter of your choice

Configuration Options:

Electrical Specifications:

• Battery chemistry: Lithium Iron Phosphate (LiFePO4)
• Battery configuration: 210S1P (7 packs @ 30S1P)
• Battery max. continuous power: 105.5kW (25°C, 665.6VDC, 0.5C)
• Battery cycle life: 70% retention at 8,000 cycles
• Nominal cell capacity: 314Ah
• Continuous current: 157A (C/2)
• Scalability: up to 8 units in parallel (1,688kWh max)

Mechanical Specifications:

• Dimensions: 48"W x 91.5"H x 63"D
• Net weight: 2,490kg (5,490 lbs)
• Material/finish: steel with corrosion-resistant powder coating
• Thermal management: Dantherm HVAC
• Operating temperature: -40°C to 55°C (-40°F to 131°F)
• Storage temperature: -20°C to 45°C (0°F to 110°F)
• Relative operating humidity: 0-95%, non-condensing
• Noise level @ 1.5m: ≤65 dB
• Ingress rating: Outdoor IP55 (NEMA 3R)

Certifications (Pending): UL9540 DC ESS, UL9540A, UL1973, UN38.3, UN3480
Fire suppression: Integrated
Warranty: 10 years
