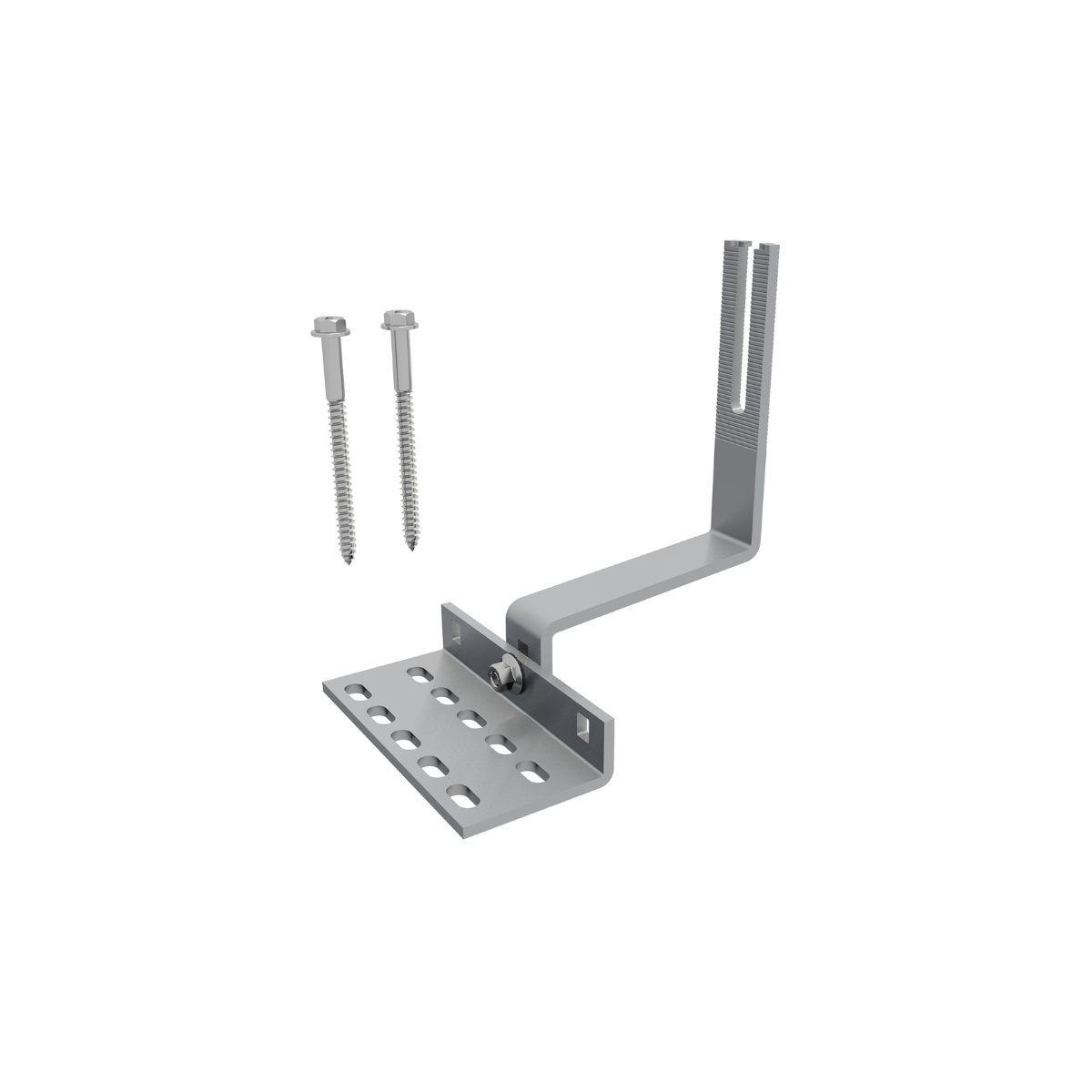

IronRidge QuickMount All Tile Hook Side Mount

The IronRidge QuickMount All Tile Hook Side Mount (QM-ATH-02-M1) is a universal, adjustable roof attachment designed for installing solar racking on concrete tile roofs. Engineered for flat, S, and W tile profiles, the All Tile Hook provides a secure and flexible mounting solution without compromising roof integrity. Its adjustable arm and multiple base-plate slots allow precise positioning over rafters, while the open vertical slot enables rail height adjustments to accommodate roof variations.

Built with durability and code compliance in mind, the All Tile Hook is UL 2703 listed, strength-tested, and compatible with IronRidge’s full Flush Mount System. Installers benefit from a single 7/16" socket installation, thanks to consistent hardware across lag bolts and the carriage bolt nut. The included 5/16" × 4" hex-flange lag bolts provide high structural capacity, and the hook’s safety-locked carriage bolt prevents rotation for a secure connection.

An optional aluminum deck flashing is available for enhanced weather protection. The system has been tested to UL 441 Rain Test and TAS 100(A) Wind-Driven Rain standards, ensuring strong water-sealing performance for tile roofs from 2:12 to 12:12 pitch.

Key Features

• Universal compatibility with flat, S, and W concrete tiles
• Adjustable arm and lateral base-plate slots for flexible placement
• Single-driver 7/16" socket for all hardware
• Safety-locked design prevents hook rotation
• Strength-tested and UL 2703 listed
• Compatible with optional aluminum deck flashing
• Works with all IronRidge XR rail systems
• 5/16" × 4" structural lag bolts included
• 25-year product warranty (manufacturer)
