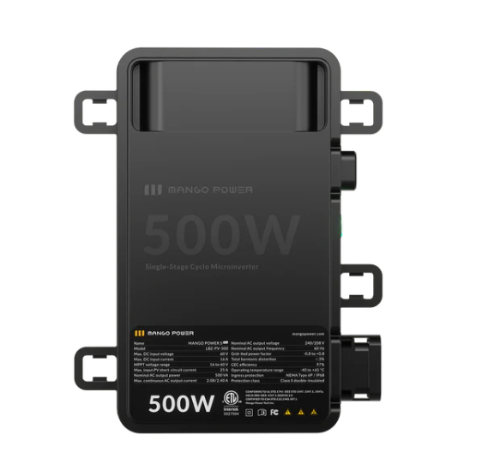

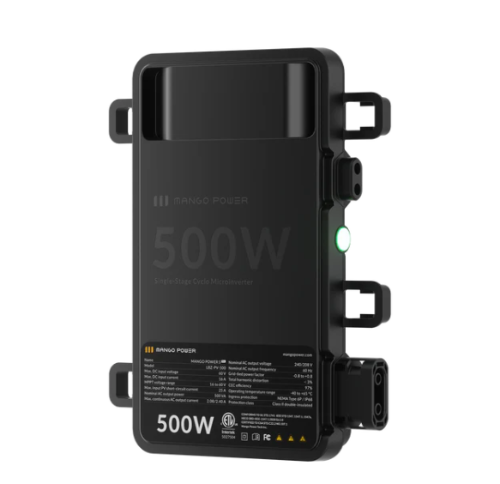

Mango Power S Pro Microinverter 5000W

The Mango Power S Pro Microinverter 5000W Set includes 10 single-stage cyclo microinverters, each rated at 500W, for a combined 5000W system. Designed for rooftop installation, this set is sold as microinverters only; solar panels are purchased separately. Installation should be performed by a licensed electrician in accordance with local electrical codes.

Key Features:

• 97% CEC efficiency maximizes solar power from sunrise to sunset
• 99.9% MPPT efficiency ensures precise, stable power tracking per panel, so shading on one panel does not affect the rest of the system
• Single-stage cyclo microinverter topology reduces components by 30% for 2.5x reliability
• Zero DC arcing risk for safer operation
• NEMA Type 6P / IP68 enclosure rating, hermetically sealed, dustproof, waterproof, fanless
• 100-microsecond rapid shutdown response, exceeding NEC requirements
• Plug and play Wi-Fi mesh connectivity with real-time monitoring via the Mango Power app
• 25-year warranty, 219,000-hour design life
• Certified to CA Rule 21 (UL 1741-SA), IEEE 1547:2018 (UL 1741-SB), and CSA C22.2

Note: In regions requiring Zero Export or export-limiting per local utility regulations, the Mango Power Smart Gateway Lite can be used to enable compliant operation (sold separately).

Specifications (per unit):

• Nominal output power: 500W (VA)
• Power factor setting: 0.99
• Power factor (adjustable): 0.8 leading to 0.8 lagging
• Total harmonic distortion: <3%
• CEC efficiency: 97%
• Night power consumption: <50mW
• Operating temperature range: -40°C to +65°C (-40°F to 149°F)
• Storage temperature range: -40°C to +85°C
• Enclosure rating: NEMA Type 6P / IP68
• Weight: 1.2kg per unit (12kg / 26.5 lbs for the set of 10)
• Dimensions: 221.5mm x 129.0mm x 32.5mm
• Cooling: Natural convection
• Pollution degree: III
• Max altitude: 4000m (13,123 ft)
• Warranty: 25 years
• Communication: Wi-Fi
