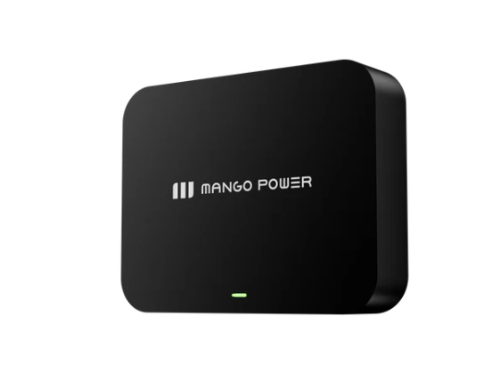

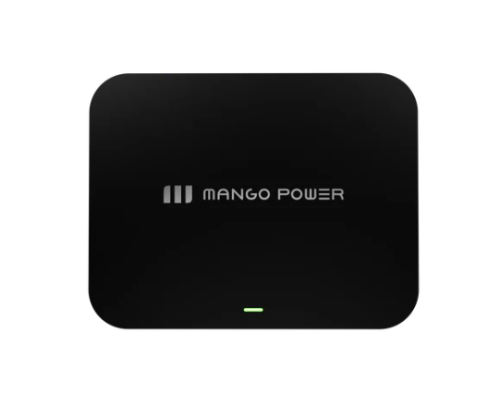

Mango Power Smart Gateway Lite

The Mango Power Smart Gateway Lite is a whole-home energy monitoring and zero-export control device required for Mango Power S PIPV systems installed outside Utah, enabling zero-export functionality where local grid interconnection requires it.

Key Features:

• Rapid zero-export response, less than or equal to 0.25 seconds, prevents unwanted power backflow to the grid
• Wi-Fi (2.4GHz) connectivity for real-time monitoring and management through the Mango Power app
• Revenue-grade energy monitoring with plus/minus 0.5% accuracy for voltage and power

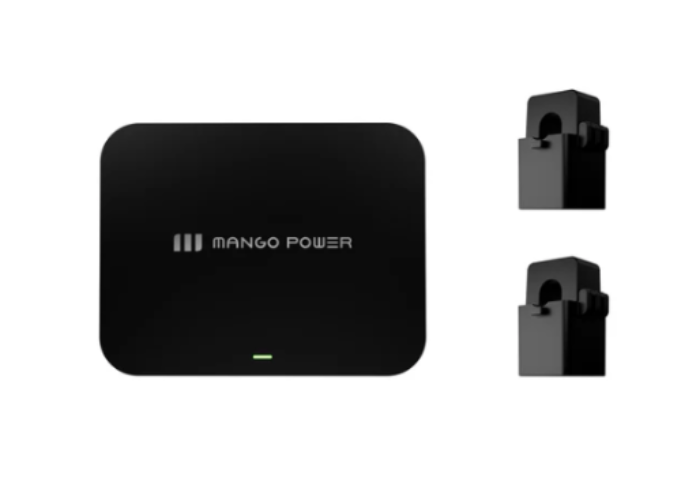

• Automatic CT and phase error detection for simplified installation
• Flexible plug-in or hard-wired installation to fit different home setups
• 200A max operating current supports whole-home metering

Specifications:

• AC input voltage range: 100-240V (L-N)
• Nominal AC frequency: 60Hz
• Max operating current: 200A
• Time measurement accuracy: ≤0.25s/T
• Voltage accuracy: ±0.5%
• Power accuracy: ±0.5%
• Mains frequency accuracy: 45-65Hz, ±0.2%
• Interface: Wi-Fi (2.4GHz)
• Max RF power: <20dBm
• Weight: 0.2kg
• Dimensions: 125.6mm x 97.6mm x 28.6mm
• Operating temperature: -25°C to 55°C (-13°F to 131°F)
• Storage temperature: -40°C to 85°C (-40°F to 185°F)
• Max altitude: 2000m (6562ft)
• Ingress protection rating: IP20
• Warranty: 3 years
