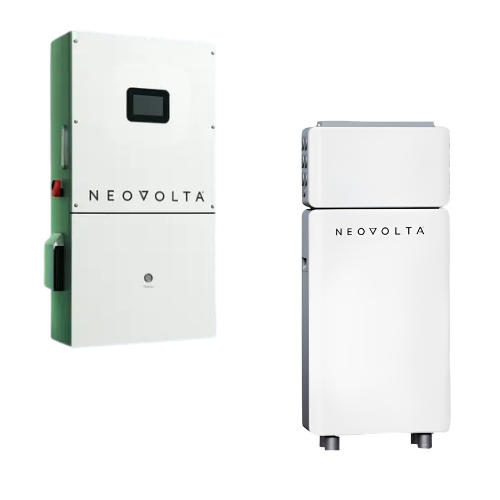

NeoVolta NV16KAC + NVPlus-16 Bundle

The NeoVolta NV16KAC Hybrid Inverter and NVPlus-16 16kWh LiFePO4 Battery are designed and engineered in California to stack together directly — no extra racking or adapter hardware needed. This bundle delivers 24kW DC PV input, 16kW of AC output in backup mode, and a 200A passthrough design with 100% unbalanced loads capability, backed by an 8,000-cycle battery life and 15-year warranty on both components.

Cold-weather capable with an integrated 300W heater that activates at 41°F, the NVPlus-16 stays operational in climates where most batteries tap out. Tool-less quick-connect terminals and an integrated wire junction box cut installation time. Wall-mount or floor-mount, IP65/NEMA 3R rated for indoor and outdoor installs.

Max configuration supports one NV16KAC inverter with up to 3 NVPlus-16 batteries.

NV16KAC Inverter Specs

• Max PV Input Power: 24,000W
• Max PV Input Voltage (Voc): 500V*
• MPPT Voltage Range: 120–430V
• MPPT / Strings per MPPT: 4 | 1+1+1+1 (2 | 2+2)*
• Nominal AC Output: 16,000W
• Max Continuous AC Passthrough: 200A
• Max Apparent Output Power (battery only): 13.2kVA – 100%
• Max Efficiency: 96.50%
• MPPT Efficiency: >99.0%
• Communication: CAN | RS485 | WiFi | 4G (optional)
• IP Rating: IP65 / NEMA 3R
• Dimensions (W x H x D): 19.5" x 35.4" x 10.2" / 495mm x 900mm x 260mm
• Weight: 123 lbs / 56kg
• Operating Temperature: -13°F to 140°F / -25°C to 60°C
• Warranty: 15 Years

NVPlus-16 Battery Specs

• Battery Chemistry: LiFePO4
• Nominal Energy: 16kWh (9.73kW output power)
• Nominal Voltage: 51.2V
• Voltage Range: 43.2 ~ 59.2V
• Max Charging / Discharging Current: 190A
• Cycle Life: 8,000 Cycles
• Heating: 300W, activates at 41°F / 5°C
• Communication: RS485 | CAN | RS232
• Compliances: UN38.3, UL9540 3rd Edition, UL9540A, UL1973
• IP Rating: IP65 / Type 3R
• Dimensions (W x D x H): 22" x 8.3" x 48.3" / 560mm x 210mm x 1225mm
• Weight: 337.31 lbs / 153 kg
• Operating Temperature: Charge 32°F–122°F / 0°C–50°C, Discharge -4°F–122°F / -20°C–50°C
• Warranty: 15 Years

Key Features

• Direct stacking — no extra racking or adapter hardware
• 200A passthrough design, 100% unbalanced loads capability
• Cold-weather capable integrated heater
• Tool-less quick-connect terminals, integrated wire junction box
• Wall or floor mount, IP65/NEMA 3R rated
• 15-year warranty on both inverter and battery
