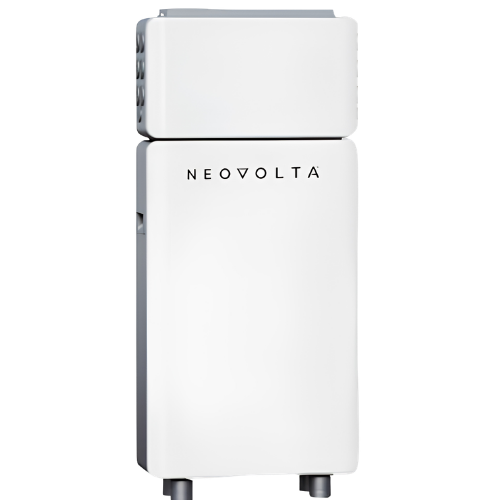

The NVPlus-16 is a 16kWh LiFePO4 battery designed to stack directly with the NV16KAC Hybrid Inverter no extra racking or adapter hardware needed. Built for both indoor and outdoor installs, it's cold-weather capable with an integrated 300W heater that activates at 41°F, keeping it operational in climates where most batteries tap out.
Tool-less quick-connect terminals and an integrated wire junction box cut installation time. Wall-mount or floor-mount, IP65/NEMA 3R rated, and backed by a 15-year warranty.
Key Specs:
-
Nominal Energy: 16 kWh
-
Chemistry: LiFePO4 (314Ah cells)
-
Nominal Voltage: 51.2V | Range: 43.2–59.2V
-
Max Continuous Discharge: 9.73 kW
-
Max Charge/Discharge Current: 190A
-
Cycle Life: 8,000+ cycles
-
Operating Temp (Discharge): -4°F to 122°F (-20°C to 50°C)
-
Cold Weather Heating: 300W integrated heater, activates at 41°F
-
Dimensions: 22" × 8.3" × 48.3" | Weight: 337 lbs
-
Communication: RS485, CAN, RS232
-
Certifications: UL9540 3rd Ed., UL9540A, UL1973, UN38.3
-
Installation: Wall or floor mount, indoor or outdoor, IP65/NEMA 3R
-
Warranty: 15 Years
