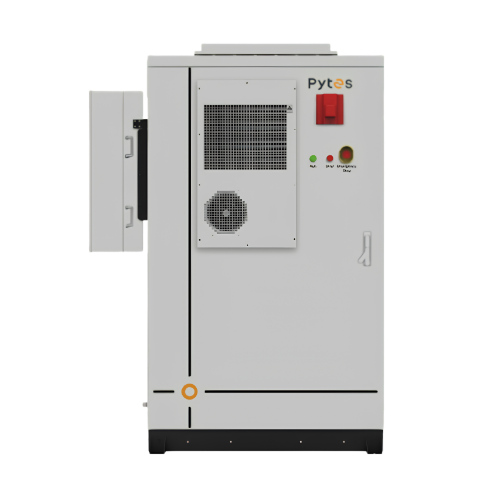

Pytes Energy 61.44 kWh HV Outdoor Commercial Battery System

The Pytes Energy HV48100 SE SA-30K is a 61.44 kWh high-voltage outdoor commercial battery system built for compatibility with the Sol-Ark 30K inverter (inverter sold separately). It ships in an IP55-rated outdoor cabinet with integrated HVAC for reliable operation in both hot and cold climates, and is UL 9540, UL 9540A, and UL 1973 certified.

The system uses a 6S2P configuration of Tier 1 automotive-grade LiFePO4 battery modules, delivering 307.2V nominal voltage, 200Ah capacity, and dual 50A charge/discharge current paths. Built-in safety features include multi-level BMS monitoring, aerosol fire suppression, an explosion relief plate, hazardous gas detection with automatic ventilation, and a fire hose connection port for first responders.

Components included:

• (12) Pytes Energy Battery Module Units, HV48100SE BMU (6S2P)
• (2) Pytes Energy Battery Control Units, HV48100SE BCU
• (1) Pytes Energy HV48100SE outdoor cabinet

Note: Sol-Ark 30K inverter is not included and must be purchased separately.

Key Features:

• Tier 1 automotive-grade LFP battery cells
• Multi-level BMS monitoring and protection
• Multi-layer active fire suppression system
• Built-in module-level fans and forced-air HVAC for thermal management in high heat
• Integrated heating system for reliable low-temperature operation
• IP55 rating suitable for indoor or outdoor installation
• Scalable to MWh-level capacity for commercial and industrial applications
• Remote monitoring via Pytes Battery Cloud
• Universal mounting structure compatible with multiple inverter models

Specifications:

Battery Module:

• Chemistry: LiFePO4 (LFP)
• Module energy: 5.12 kWh
• Nominal voltage: 51.2V
• Operating voltage: 47.5V - 57.6V
• Weight: 99 lbs (45 kg) per module

System:

• Configuration: 6S2P
• Rated energy: 61.44 kWh
• Rated power: 30.72 kW
• Operating voltage: 285V - 345.6V
• Charge/discharge current: 50A x 2

General:

• Dimensions: 43" x 47" x 79" (1100 x 1193 x 2015mm)
• Weight: 2,234 lbs (1,013 kg)
• Ingress protection: IP55
• Cycle life: 6,000 cycles
• Warranty: 3 years (system), 10 years (battery module)

HVAC:

• Max cooling capacity: 2,300W (L35)
• Max heating capacity: 1,050W
• Ingress protection: IP55

Environmental:

• Operating temperature: -4°F to 131°F (-20°C to 55°C)
• Operating altitude: ≤9,843 ft (3,000m)
• Relative humidity: 5%-80%, non-condensing

Certifications: UL 9540 Ed.3 (2023), UL 9540A, UL 1973, UN 38.3
Listings: CEC, SGIP, OGPe
