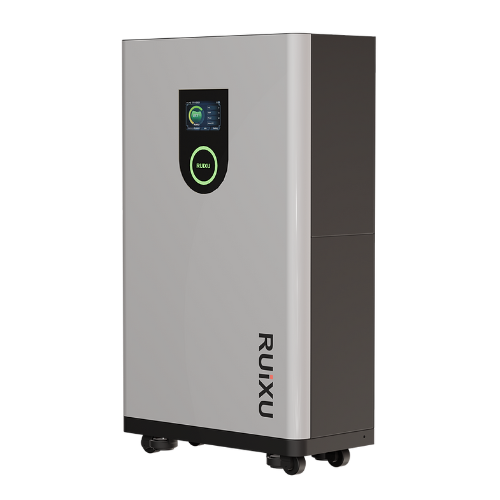

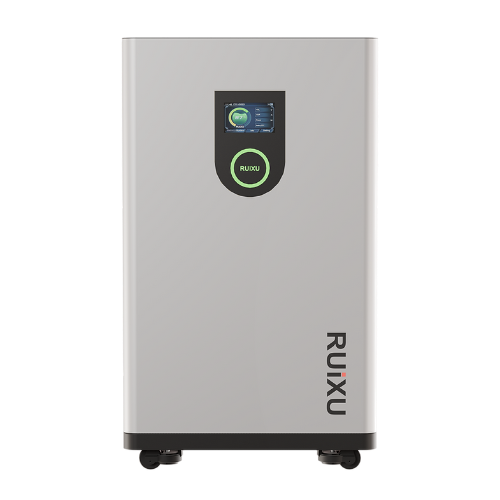

The RUiXU Lithi2-16 is a 51.2V, 314Ah LiFePO4 battery pack rated at 16.07kWh nominal energy, designed for both indoor and outdoor residential or commercial installation. It is IP55-rated and can be expanded up to 32 units in parallel for a total of 512kWh. The battery is UL1973, UL9540A, UL9540, CEC, and SGIP listed.
Standard package includes:
- (1) RUiXU Lithi2-16 battery
- (1) RJ45/CAT5e patch cable
- (1) Ground cable
- (1) Set of parallel 1/0 AWG OP140 or PP140 cables

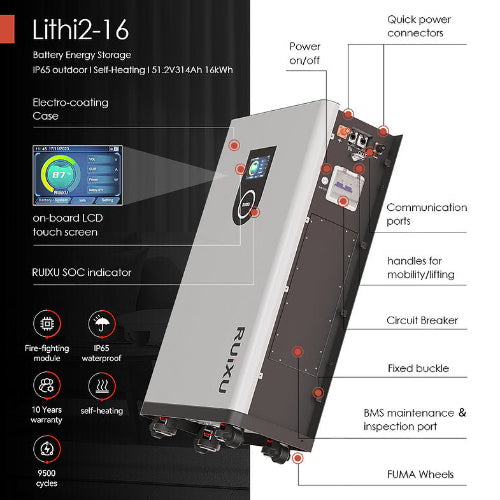

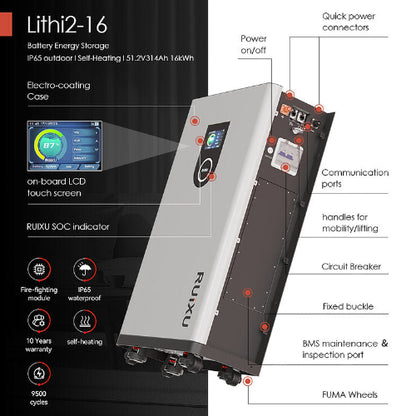

Key Features:
- 5-inch on-board LCD touch screen for battery information and setting adjustment
- Gas aerosol fireproof module for improved internal fire protection
- Quick plugs rated for 250A continuous overcurrent, tool-less connection
- Four concealed heavy-duty wheels plus an anti-tipping wall mount for stability

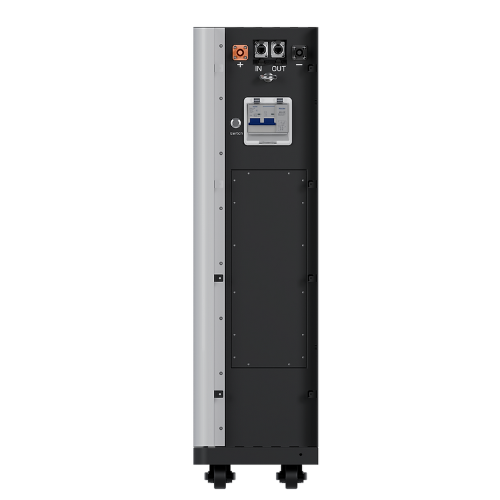

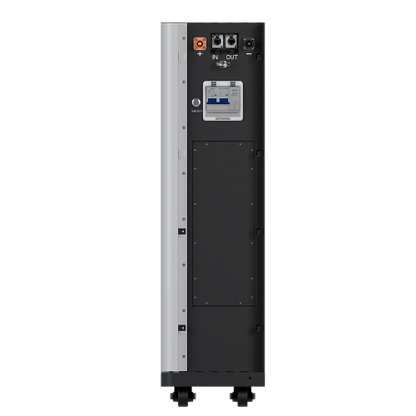

- Side inspection port for BMS and fuse access
- All-pole protection: fuse on negative terminal, circuit breaker on positive terminal
- Intelligent double-equilibrium cell balancing
- Self-heating feature for cold-climate charging
- Electro-coated (electrophoresis) enclosure for outdoor rust prevention
Communication compatibility:
- CANbus: Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
- RS485: MPP, Voltronic, RCT, Alpha Outback
Specifications:
- Nominal voltage: 51.2V
- Nominal capacity @ 0.2C: 314Ah
- Nominal energy: 16.07kWh
- Cycle life @ 80% DOD: ≥9,500 cycles
- Dimensions: 924 x 543 x 250mm (36.3" x 21.3" x 10", with wheels)
- Weight: ~137kg (302.01 lbs)
- Ingress protection: IP55
- Parallel expandability: up to 32 units (16kWh to 512kWh)
- Certifications: UL1973, UL9540A, UL9540, CEC, SGIP
