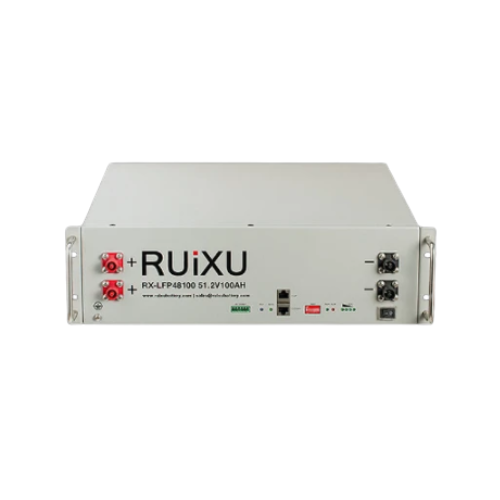

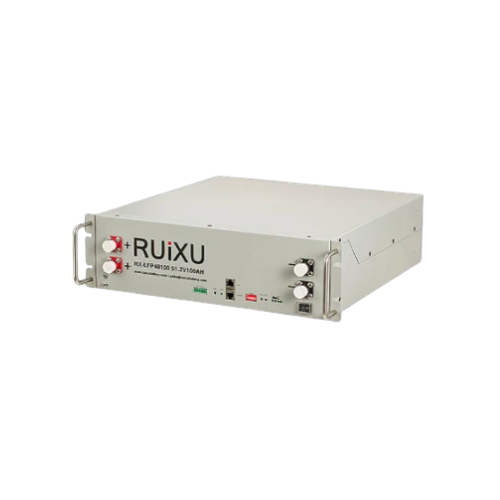

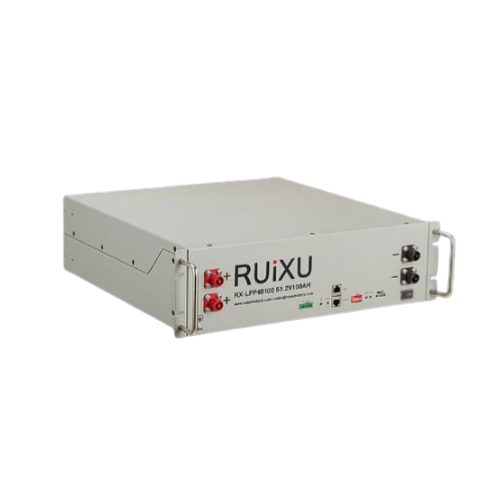

The RUiXU RX-LFP48100 is a 19" rack-mounted 3U LiFePO4 battery module rated at 51.2V, 100Ah, and 5,120Wh nominal energy. It is designed as a modular building block for server rack battery systems, supporting up to 32 units in parallel to scale from 5kWh to 160kWh without an external controller. The battery is UL1973, UL9540A, CEC, and SGIP listed.
Standard package includes:
- (1) RUiXU 48V server rack battery (RX-LFP48100)
- (1) RJ45/CAT5e patch cable
- (1) Ground cable
- (1) Set of parallel 4AWG cables per battery
Cable notes:
- For 6-slot cabinet installations, a 300mm cable (battery to cabinet busbar) is included
- For setups without a busbar connection, a 250mm cable (battery to battery) is included, available only for 48V systems rated 2000W-5000W
Key Features:
- Modular design supports up to 32 units in parallel
- DIP address setting for RS485 baud rate and inverter protocol selection
- Broad inverter communication compatibility (CANbus and RS485)
Communication compatibility:
- CANbus: Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
- RS485: MPP, Voltronic, RCT, Alpha Outback
Specifications:
- Nominal voltage: 51.2V
- Nominal capacity @ 0.2C: 100Ah
- Nominal energy: 5,120Wh (5.12kWh)
- Dimensions: 482.6 x 460 x 133mm (19" x 18.1" x 5.23")
- Weight: ~47kg (103.6 lbs)
- Parallel expandability: up to 32 units (5kWh to 160kWh)
- Certifications: UL1973, UL9540A, CEC, SGIP
