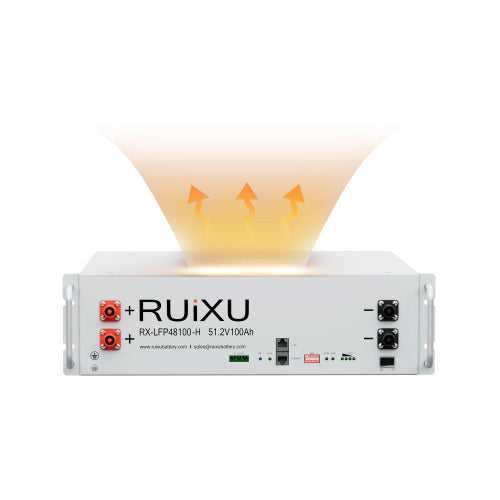

RUiXU RX-LFP48100-H 19" Rack Mounted 3U Server Rack Battery Module, 5.12kWh, Self-Heating

The RUiXU RX-LFP48100-H is a self-heating version of the RX-LFP48100 19" rack-mounted 3U LiFePO4 battery module, rated at 51.2V, 100Ah, and 5,120Wh nominal energy. Built for cold-weather use, it can safely charge at temperatures down to -20°C (-4°F) using a standard charger or solar charger, with heater pads that draw power directly from the charger. Like the standard version, it is modular and supports up to 32 units in parallel, scaling from 5kWh to 160kWh without an external controller. The battery is UL1973, UL9540A, CEC, and SGIP listed.

Standard package includes:

• (1) RUiXU 48V server rack battery (RX-LFP48100-H)
• (1) RJ45/CAT5e patch cable
• (1) Ground cable
• (1) Set of parallel 4AWG cables per battery

Cable notes:

• For 6-slot cabinet installations, a 300mm cable (battery to cabinet busbar) is included
• For setups without a busbar connection, a 250mm cable (battery to battery) is included, available only for 48V systems rated 2000W-5000W

Key Features:

• Self-heating function for safe charging in cold climates, down to -20°C (-4°F)
• Heater pads powered directly from the charger, no separate power source needed
• Modular design supports up to 32 units in parallel
• DIP address setting for RS485 baud rate and inverter protocol selection
• Broad inverter communication compatibility (CANbus and RS485)

Communication compatibility:

• CANbus: Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
• RS485: MPP, Voltronic, RCT, Alpha Outback

Specifications:

• Nominal voltage: 51.2V
• Nominal capacity @ 0.2C: 100Ah
• Nominal energy: 5,120Wh (5.12kWh)
• Min. charging temperature: -20°C (-4°F), with self-heating
• Dimensions: 482.6 x 460 x 133mm (19" x 18.1" x 5.23")
• Weight: ~47kg (103.6 lbs)
• Parallel expandability: up to 32 units (5kWh to 160kWh)
• Certifications: UL1973, UL9540A, CEC, SGIP
