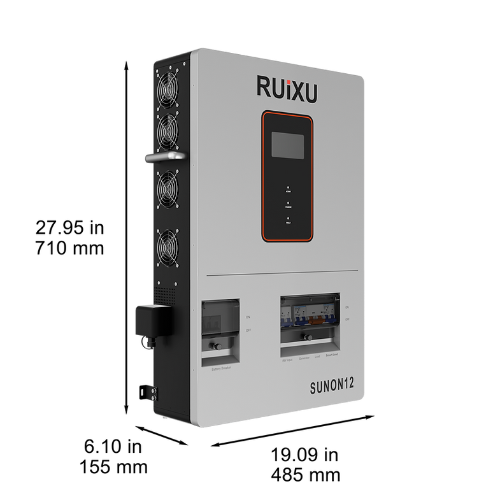

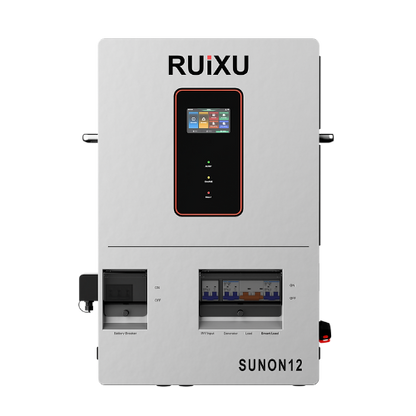

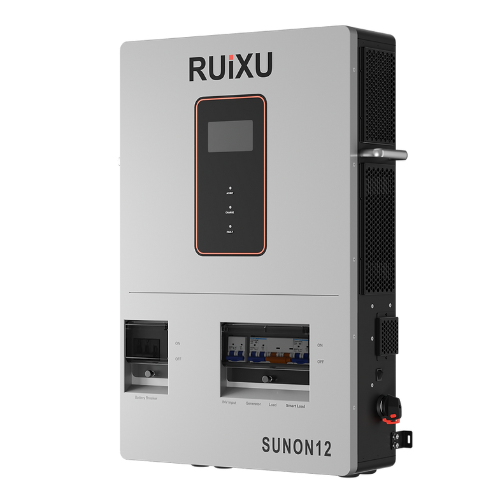

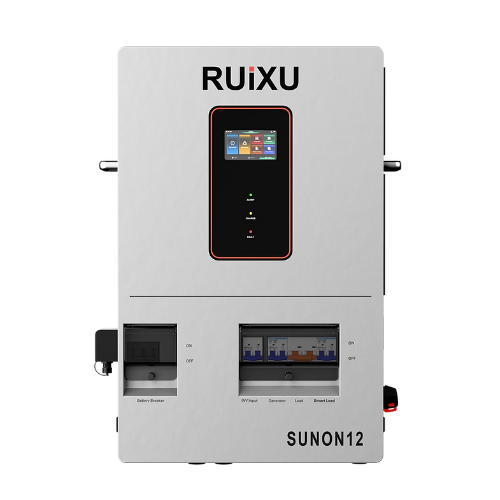

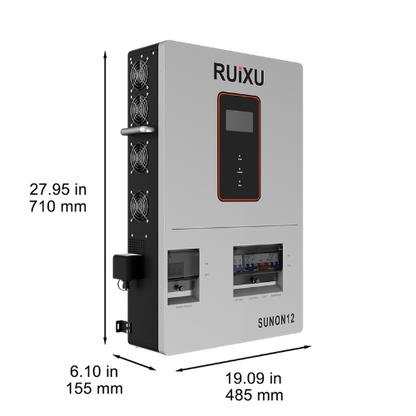

The RUiXU SUNON12 is a 12kW single/split-phase off-grid inverter compatible with 48V batteries, supporting charging up to 250A. Its SUB working mode enables hybrid charging from both solar and grid sources, with a time-sharing charge/discharge function to optimize energy usage. Up to six units can be paralleled for a combined output of 72kW, making it suitable for residential and commercial applications.
Standard package includes:
- (1) SUNON12 12kW inverter
- (1) 200cm CAT6 communication cable (battery connection)
- (1) Operation manual
- (1) Wi-Fi dongle
Key Features:
- Powerful hybrid charging: up to 150A combined solar and grid hybrid charging
- Intelligent time-sharing: timed charging and discharging for maximum energy efficiency
- Stackable design: up to 6 units in parallel for 72kW total output
- Dual MPPT technology: 99% MPPT efficiency for optimal solar utilization
- Smart load output: 63A capacity with adaptive control via voltage, SOC, and PV input
- Generator compatibility: dedicated generator input, selectable 120V or 240V operation
- Bypass output: up to 125A capacity with seamless EMS switching
- Rapid shutdown: quickly de-energizes solar PV systems for first responder safety
- Wi-Fi and app integration for remote monitoring
Specifications:
- Rated output power: 12kW
- Battery voltage: 48V
- Max charging current: 250A (up to 150A hybrid solar + grid)
- MPPT: dual MPPT, 99% efficiency
- Smart load output: 63A
- Bypass output: 125A
- Parallel capability: up to 6 units (72kW total)
- Generator input: dedicated, 120V/240V selectable
- Communication: Wi-Fi with app monitoring
- Certification: UL1741
