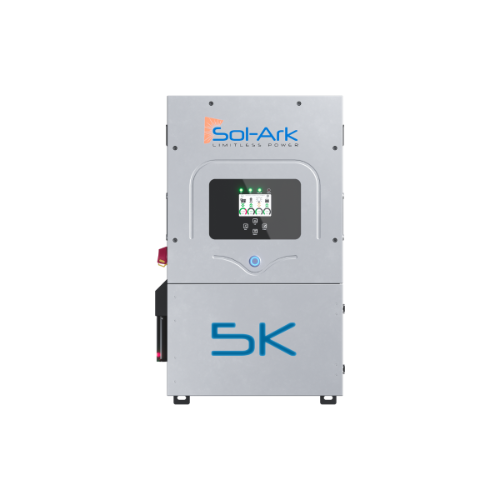

    Sol-Ark 5k 48V All-in-One Split Phase Hybrid Inverter
Sol-Ark 5k 48V All-in-One Split Phase Hybrid Inverter
SKU:5K-2P
Regular price

            $4,229.00 USD


          Regular price



                $0.00 USD


          Sale price

          $4,229.00 USD



        Unit price


          /
           per




    Shipping calculated at checkout.
Couldn't load pickup availability
Share
Characteristics
+Rated Power Output [W]: 5000
                Safety Features:
• PV disconnect switch
• Ground fault detection
• PV rapid shutdown control
• PV arc fault detection
• PV input lighting protection
• AC input/output 63 A breakers
• Battery breaker/disconnect
Characteristics:
• Warranty: 5 Years
• Applications: Can be used with Grid-tied, Off-Grid, or Battery Backup System
• Communication: Wifi
• Display: Color touch screen
• Enclosure: NEMA Type 3R
• CEC Efficiency: 96.5%
• Peak Efficiency: 97.5%
• Response Time: 4ms
• Charging curve: 3 stage with equalization
Easy Install:
The 5K INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.
Fleet Management:
With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.
AC/DC Coupling
Supports simultaneous DC and AC coupling. Boosts PV energy without increasing PV array size and reduces storage inverter costs.
Warranty and Reliability
Comes with an award winning iron clad warranty and a 7 day a week live engineering support to assist you in all your needs.
Note: The SA-5K will not be CEC listed (CA) nor will it be HECO compliant (HI). Offgrid only in these markets.
