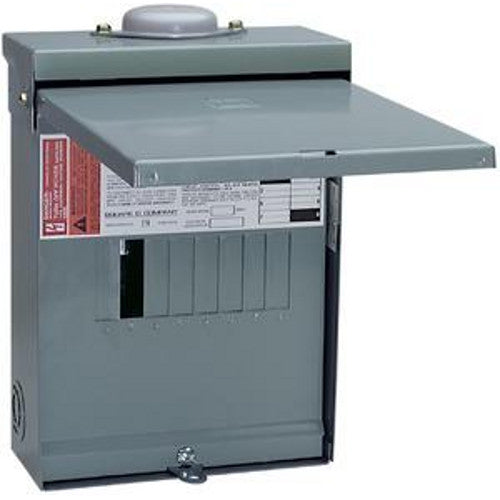

SQUARE-D QO Load Center 6/12 100A 120/240VAC NEMA 3R
Load Center
Square D QO612L100RB Characteristics:
• Line Rated Current: 100 A
• Certifications: UL listed
• Enclosure Rating: NEMA 3R outdoor
• Cover type: Surface
• Number of spaces: 6
• Short Circuit Current Rating: 10 kA
• Maximum Number of Single Pole Circuits: 12
• Maximum Number of Tandem Breakers: 6
• Phase: 1 phase
• System Voltage: 120/240 V AC
• Electrical connection: Lugs
• Wire Size: AWG 8...AWG 1 (aluminium/copper)
Why Need Load Center?
QO Circuit Breaker Load Centers from Square D are Underwriters Laboratories (UL) Listed panelboards. They are designed to meet
residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
The leader for safe, reliable, and innovative solutionsQO Load Centers are built on the Square D reputation for reliability, innovation, and circuit protection leadership. The Square D brand is the number one choice of more electricians and home builders.
