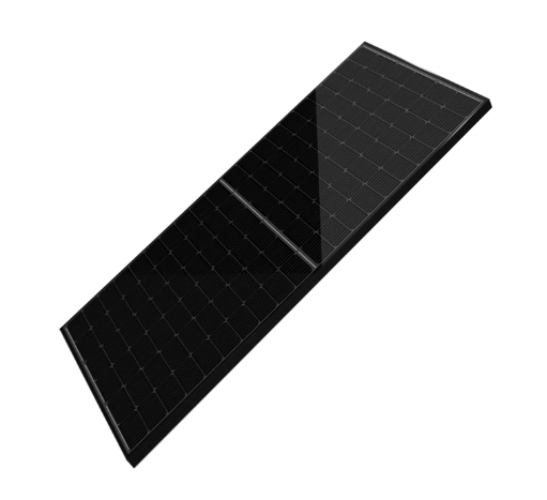

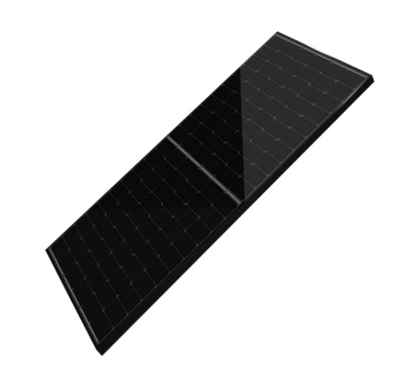

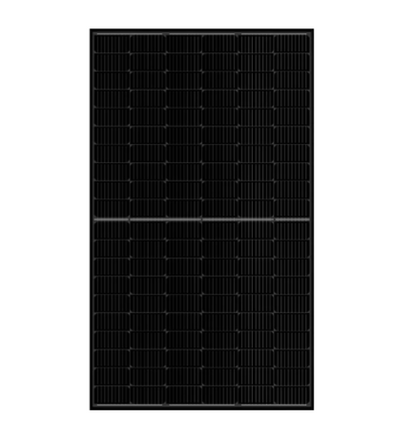

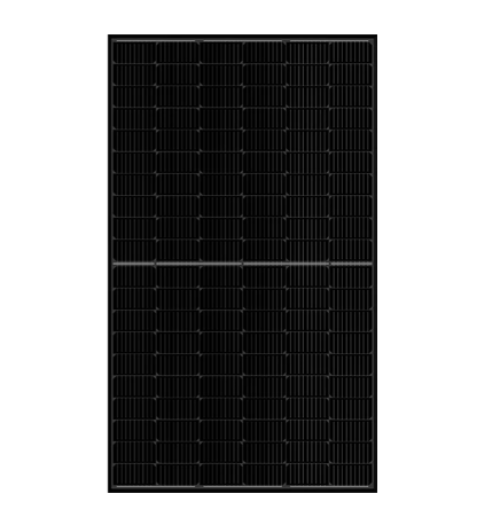

The ZNShine Solar 405 Watt panel features an all-black design with high power density, built from 108 mono black solar cells and rated at 20.48% efficiency. ZNShine Solar is a Tier 1 manufacturer with over 34 years of manufacturing experience, and its panels have ranked as a top performer in the DNV GL solar panel reliability scorecard.
Key Features:
- High power density from advanced cell spacing and finer grid line technology
- Tier 1 bankable brand with independently certified automated manufacturing
- All-black design for improved rooftop aesthetics
- Enhanced low-light performance for haze, cloudy, and early morning conditions
- Built to withstand harsh environments including salt air, ammonia, sand, high temperatures, and high humidity
Warranty:
- 25-year power warranty (covers power production with expected annual degradation)
- 12-year product warranty (covers manufacturing defects, faulty wiring, and premature wear)
- 98% power output guaranteed in year 1
- 92% power output guaranteed at year 10
- 84% power output guaranteed at year 25
Specifications:
General:
- Manufacturer: ZNShine Solar
- Model number: ZXM7-SH108-405/M
- Country of origin: China
Mechanical:
- Dimensions: 67.79" x 44.64" x 1.18"
- Weight: 45.1 lbs
- Frame color: Black
- Backsheet color: Black
Electrical:
- Power at STC: 405W
- Number of cells: 108
- Module efficiency: 20.48%
- Max power voltage: 31.10V
- Open circuit voltage: 37.30V
- Max power current: 13.03A
- Short circuit current: 13.77A
- Max system voltage: 1,500V
